详细信息
安全带、织带、宠物带等产品缝制而设计，缝制线路均匀美观、拉力稳定。

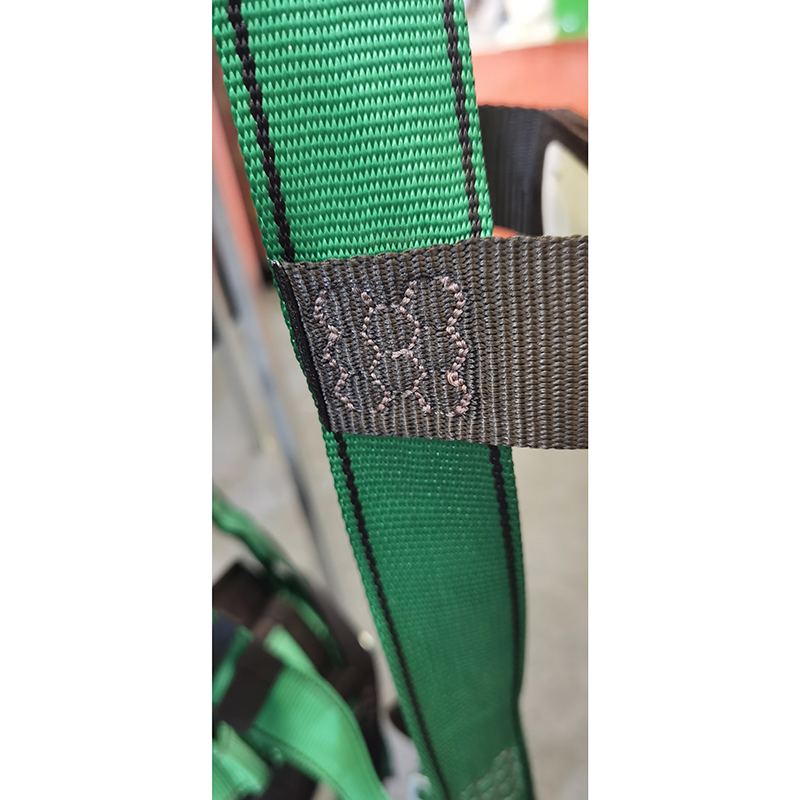

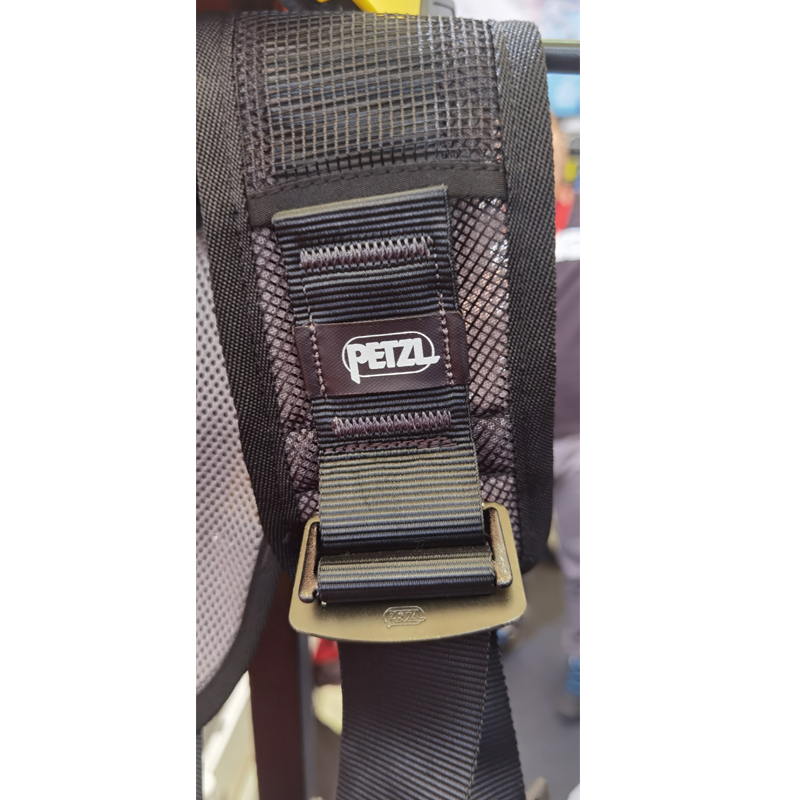

Safety belts, webbing sling and pet strap products are designed for sewing. The sewing lines are even and beautiful, and the pulling force is stable.
最粗可以缝制1000D线，本机器带自断剪线功能。
The thickest can sew 1000D thread, this machine has a self-breaking thread cutting function.
本机型严格按照出口品质标准。
八年以上高级技术工程师装配而成。
Assembled by senior technical engineers over eight years.
本机型经过多次优化改良，操作简单，不需要熟练缝纫工。
This model has been optimized and improved many times, and the operation is simple, without skilled sewing workers.
高于普通机型的生产效率。
Higher production efficiency than ordinary models.
全新液晶触摸屏电控人性化操作面板，非专业人员20分钟左右学会操作，机身存储1000种图案（外置U盘不限）。
The new LCD touch screen electronicallycontrolled humanized operation panel, can stores 1000 patterns.
三倍摆梭最大容线量可达80米左右（1500D)。
The maximum line capacity of the three times shuttle hook can reach about 80 meters (1500D).
华美采用气动剪线结构。
Thread trimming structure of Huamei seatbelt.

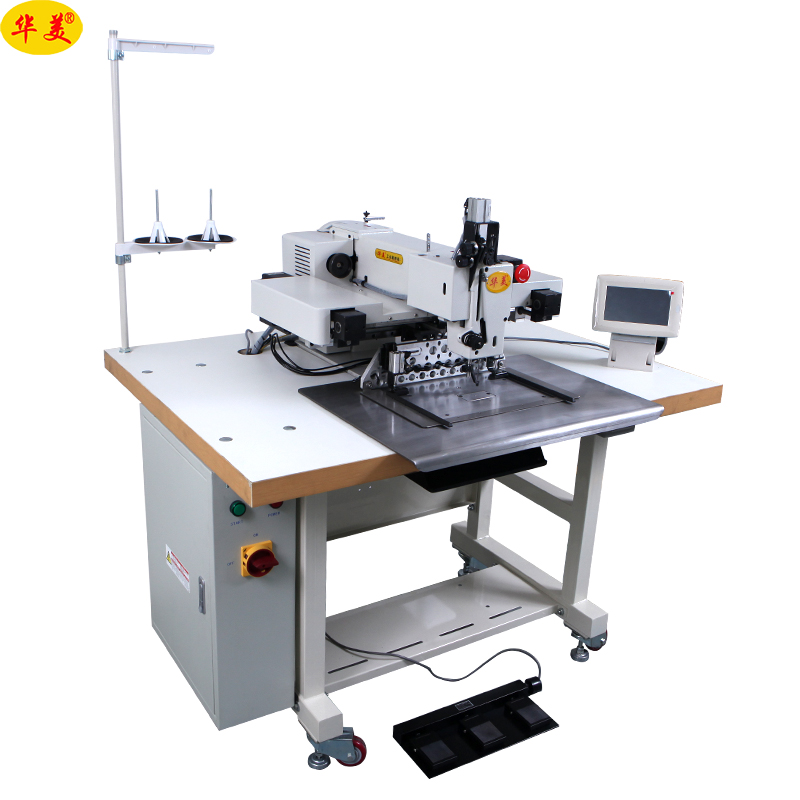

机器型号技术参数
型号MODEL 项目item | HM-3020GH |
缝纫范围Sewing area | 300mm *200mm |
线迹形式Stitching type | Single needle, lockstitch |
最高缝速Max speed | 200-2800RPM |
针距设定Stitching pitch | 0.1-12.7MM |
最大针数Max. stitches | 8000 stitches/pattern
|
最大图案数Maximum number of patterns | Store 1000 fuselage design, external usb design for unlimited
|
使用旋梭Hook | Double size rotary hook
|
使用机针Machine needle | DPX17#14-25 |
外压脚提升高度Lifting height of internal presser foot | 38MM |
内压脚提升量Lifting capacity of middle presser foot | 4-10MM |
压脚形式Presser foot form of middle presser foot | MOTOR |
Voltage | AC, 220 v, with grounding protection |
尺寸（无包装）Dimensions (without packaging) | 1600MM*1470MM*1250MM |
尺寸（带包装）Dimensions (with packaging) | 1650MM*1520MM*1360MM |
重量Weight | 480KG |
