HM-8800

详细信息

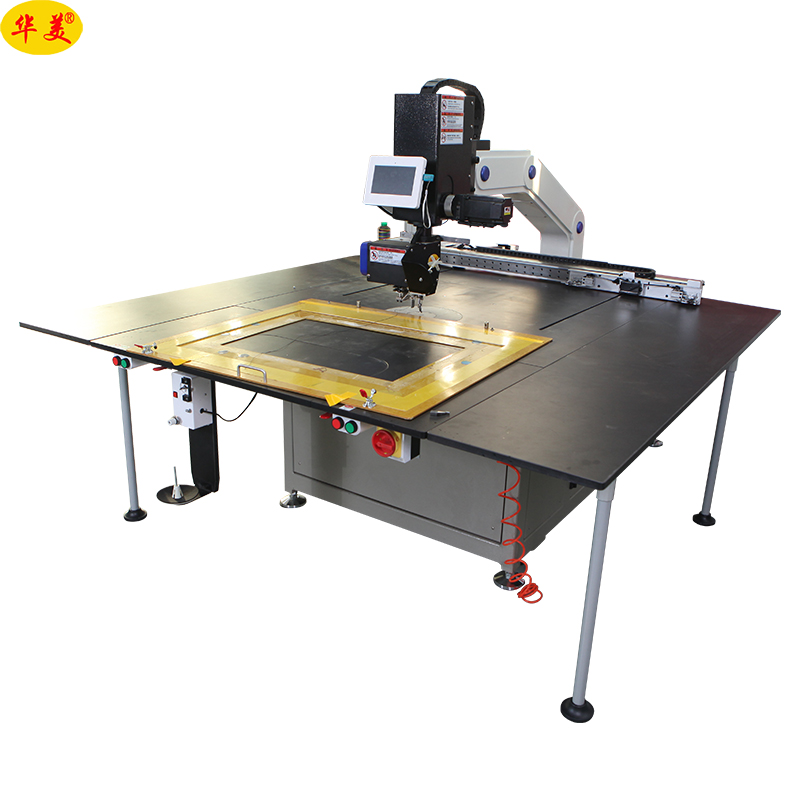

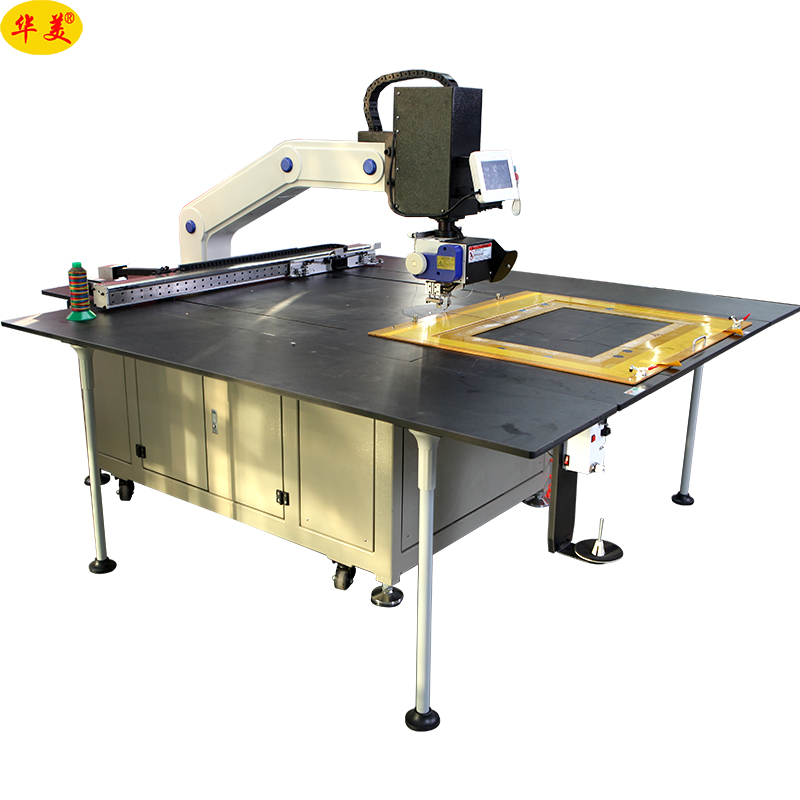

华美大范围旋转电脑样机,该机型对缝纫过程的针距要求很高,七轴联动同步旋转对应主轴床头360度,完全解决了电脑缝纫机因不同方向而造成的针距差异


Advantage and characteristics:

优势和特点:

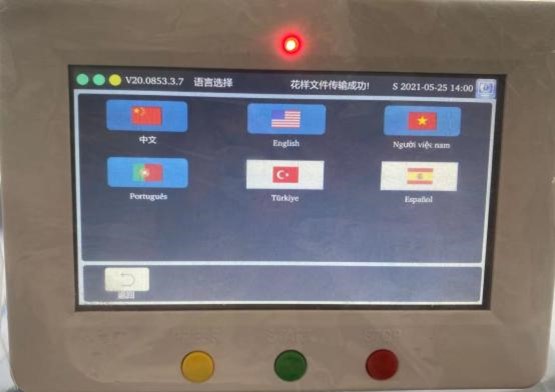

1.  Brand new LCD touch-screen electronic control

1.全新液晶触摸屏电子控制

Plc using humanized operation panel and easyto understand, Laypeople 20 minutes can operate it easily .With voice prompt inboth English and Chinese display, include eight languages 、 system can upgradeoptimization. Machine itself can make 1000 design , out USB can design more .

面板采用人性化操作面板,简单易懂,Laypeople 20分钟即可轻松操作。具有中英文语音提示显示,包括八种语言,系统可升级优化。机器本身可以做1000设计,输出USB可以设计更多。

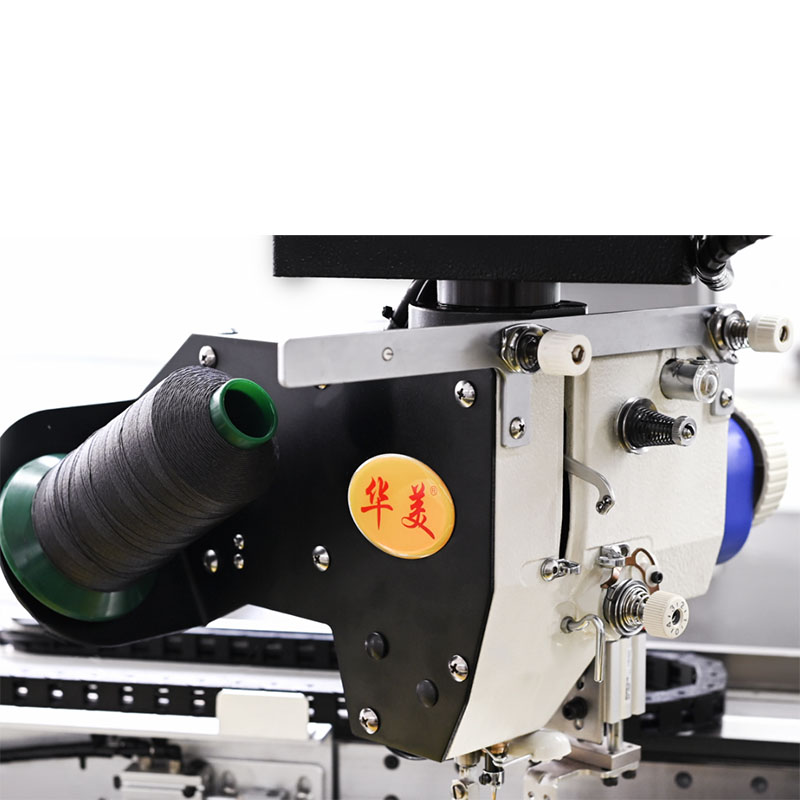

2.  Adopt imported double standard hook

采用进口二倍旋梭

Lines beautiful and strong 、线条优美,硬度强

High power motor strong penetrating power、Can easily sew all kindsof materials

大功率电机穿透力强,可方便地缝制各种材料

3、Automatic pneumatic imported cutter anddurable

全自动气动进口切刀,经久耐用

4、Fast change the template function、Don't need a secondarypositioning、Improve the production efficiency快速更换模板功能,不需要二次定位,提高生产效率

5、Automatic winding machine

Adopt the automatic winding machine lonely

The standard size of the bobbin

The standard size of the bobbin、Workers threading timesaving

自动绕线机,

采用全自动绕线机,

筒管的标准尺寸,

标准尺寸的筒管,工人穿线省时


6.   The new LCD touch screen electronically controlled humanizedoperation panel, can stores 1000 patterns.

全新液晶触摸屏电控人性化操作面板,可存储1000种图案。

7.   Include six language , very convenient and easy to  operate the machine .

包括六种语言,非常方便,易于操作机器。

MODEL



HM-8800

Sewing range

1000*600mm/1200*900mm/1500*900mm/2000*900mm

Stitching type

360 Rotating Single needle, lockstitch

Max speed

200-2800RPM

Stitching pitch

0.1-12.7MM

Max. stitches

20000 stitches/pattern

Maximum number of patterns

Store 1000 fuselage design, external usb design for unlimited



Hook

  Double size rotary hook



Machine needle

DPX17#14-25

Lifting height of internal presser foot

60MM

Lifting capacity of middle presser foot

4-10MM

Presser foot form of middle presser foot

AIR

Voltage

AC, 220 v, with grounding protection

Dimensions (with packaging)

2000MM*1960MM*1360MM

Weight

1100KG
